AUDISON BIT DMI

bit DMI DIGITAL MOST INTERFACE bit DMI is a digital interface for MOST systems, providing the ability to connect the Audison bit processors and the Audison amplifiers, equipped with digital input, to OEM multimedia systems in cars featuring the MOST technology based on optical fibre. Thanks to the digital connection, the signal can be transmitted without loss of quality, keeping the audio controls built in the OEM head unit – such as volume, balance and tone controls- as well as the hands-free kit, navigation system and parking sensors alerts unaltered.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT NOVE DRC

bit Nove THE NEW AUDISON BIT PROCESSOR bit Nove is a powerhouse of technology fully dedicated to listening pleasure: since 2007, the year in which the bit One was first introduced, Audison has never stopped delivering innovation to the digital processors segment. The bit Nove was born from this unique know-how within the industry, the perfect tool to expand a car audio system maximizing its performance.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT ONE HD VIRTUSO

bit One HD 13-CHANNELS HI-RESOLUTION DIGITAL AUDIO PROCESSOR Thanks to the Analog Devices DSP (ADSP-21489), 32 bit floating-point Sharc series (450 MHz clock), bit One HD Virtuoso makes the most of Hi-Res audio files achieving studio master quality in your car. bit One HD is able to develop an Audison Full DA HD chain, providing pure digital signal tranfer: the digital audio signal comes through one of the two optical digital inputs (TOSLINK up to 24 bit/192 kHz), is processed by the DSP at 24 bit/96 kHz and is sent to Audison amplifiers through two AD link ports, preserving all the information of the Hi-Res audio file reproduced. A dedicated FIR firmware release enables the user to process up to 9 digital channels with crossover FIR filters. Through this type of sound processing, much more demanding in terms of calculation resources, a leading-edge in-car listening experience is achieved. Three equalizers based on two different types of digital filters (FIR and IIR) manage the frequency response: 5 poles input equalization (MASTER and AUX) FIR type, to flatten the curve based on the input selected; IIR 11 poles output equalizer, to adapt the frequency response in the car compartment; 5 poles main equalization, FIR type, to “shape” the sound of the entire system according to the user’s personal music preferences. When bit One HD is connected to an OEM head unit, a guided configuration routine automatically synchronizes the input audio channels, which are often time-delayed from the OEM source or amplifier, prior to the signals summing. A De-equalization of the OEM system frequency response is then performed, featuring linear-phase FIR filters, to obtain an unparalleled reconstruction of the original signal without altering the phase response. The RVA (Remote Volume Aux) function allows the selection of an auxiliary source (like the Audison bit Play HD) and adjust its volume via the OEM Head Unit. The system setup is graphically managed and all the tuning features can be accessed intuitively, according to specific criteria required by the car audio industry. bit One HD features 8 memories for the pre-sets of the Windows-based (10, 8, 7 edition) PC software. Twelve input channels for four different signal typologies (amplified, pre-amplified and TOSLINK optical digital) and six different sources managed through DRC MP remote control (provided), making the bit One HD a unique interface suitable for any need. 13 analog and/or digital output channels ensure a wide expandability for any audio system configuration. Connecting the bit One HD to the Audison bit Tune through an automatic procedure, all the processor’s basic audio parameters can be optimized (time alignment, equalization and output levels) ensuring an excellent acoustic result.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT PLAY HD

bit Play HD HI-RESOLUTION IN-CAR MEDIA PLAYER Reproduction of 24 bit / 96 kHz FLAC files taking audio far beyond the CD standards. Digital output to build an Audison Full DA high resolution system and HDMI output. SSD* unit enclosed in a slot with mechanically damped housing for a smooth in-car music reproduction. These and many more are the features which make bit Play HD the object of desire of any car audio enthusiast. *Supplied with the product in the bit Play HD SSD version

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT-TEN

bit Ten AUDIO PROCESSOR bit Ten is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system. Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten is controlled by a software especially developed for signal treatment according to the vehicle acoustic peculiarities. Setting the parameters of each input single channel, setting the delays according to the listening position, adjusting crossovers and equalizers for each of the 5 output channels; all of these operations can be managed by the PC. USS – Universal Speakers Simulator Thanks to the integration of the USS technology, the bit Nove can also be connected to headunits featuring the “speaker load detection” circuit that would otherwise mute the audio signal output. During the installation phase, after converting the analog signal into digital, bit Ten automatically reconstructs a digital full-bandwidth stereo signal; de-equalizes the frequency response and, if necessary, reconstructs the central and subwoofer channels.The user can configure the output mode of each channel relative to the installed system.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT-TUNE

bit Tune SOUND TUNING TOOL The Audison bit Tune is a revolutionary system of automatic calibration for Audison bit processors developed with bit Drive technology. Bit Tune also includes a multitude of additional features for electro-acoustic verification and analysis of any car audio system. The Audison team’s goal in developing the bit Tune was to speed up the setting of basic parameters for the calibration of the bit processors (time alignment, equalization, levels, etc.), ensuring an excellent level of acoustic performance. This phase also includes the diagnosis of common “errors” (channel inversion/phase, no signal on one channel/cable, etc.) to set the specialist free from his “routine” work and allow him to focus on the art of “fine-tuning”. Only personal interpretation and experience can achieve what a machine could never do: create “Your Sound”!

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

AUDISON BIT TEN D

AUDISON - Bit Ten D Bit Ten D is a multi-function digital processor conceived and built to process digital and analogue signal both on the input and on output to the amplifier (featuring AD Link connection) and create top-performance system with any source typology. Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten D processes the signal with extreme accuracy and wide configurability thanks to a software especially designed for car acoustic peculiarities. Bit Ten D features an optical digital input, minimizing interference and degradations of the signal found in traditional analog interconnects, also by-passing the A/D conversion phases of analog signals. Thanks to the AD Link connection, the available outputs become 8 in total, all in digital format; they can also be used simultaneously with the analog ones (for a maximum of 8 outputs total). The AC Link is completely dedicated to the “remote control” of the system. The system is comprised of one connector for the provided DRC and one for the amplifiers present in the system. The DRC is supplied with the bit Ten D product.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

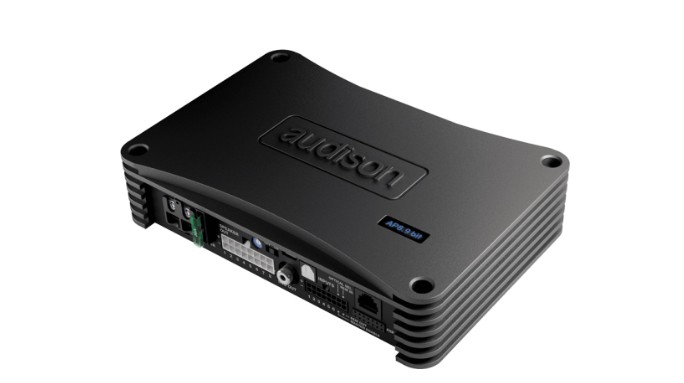

Audison AP F8.9BIT

AP F8.9 bit 8 CH AMPLIFIER WITH 9 CH DSP The new AP F8.9 bit is the ideal for the most demanding integration projects, where high power is required along with the flexibility of the nine-channel DSP. The word “Forza”, meaning “Power” in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4Ω), with an optimal power to size ratio. The integrated processor is equipped with a dedicated software and 7 pre-configured presets for a Plug & Sound experience. Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head-units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

Focal FD 1.350 : AMPLIFIER

FD 1.350 : Amplifier The FDS 1.350 is a mono block amplifier specifically designed for handling a subwoofer channel. It has a power of 210 and 350 Watts RMS under 4 and 2 Ohms respectively. In order to configure the system’s bass according to the car’s installation; it is equipped with an active crossover, bass correction and phase adjustment. -D Class – Direct Fet ® Technology - Efficient heat dissipation and precision -Stable under 2 Ohms -Stackable aluminium chassis with high heat dissipation -Low noise operational amplifiers New Japan Radio® NJM4580 -Low ESR capacitors - 105°C (220°F) -Pseudo-balanced inputs -Cable accessories included - easy to install

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

Focal FD 2.350 : AMPLIFIER

FD 2.350 : Amplifier The FDS 2.350 is a 2-channel model delivering a power of 2 x 105 Watts RMS under 4 Ohms. For a perfect matching, it’s featuring an active high-pass and lowpass crossover. The FDS 2.350 can consequently drive a pair of speaker drivers or a subwoofer. -D Class – Direct Fet ® Technology - Efficient heat dissipation and precision -Stable under 2 Ohms -Stackable aluminium chassis with high heat dissipation -Low noise operational amplifiers New Japan Radio® NJM4580 -Low ESR capacitors - 105°C (220°F) -Pseudo-balanced inputs

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

Focal FD 4.350 : AMPLIFIER

FD 4.350 : Amplifier The FDS 4.350 is the 4-channel model (4 x 58 Watts RMS) and the most versatile of the range. It can operate in 4-, 3- or 2-channel mode. In most cases, it will be used to amplify a car’s front and rear speaker drivers. It can also be used to drive front speaker drivers and a small subwoofer, for a small installation which stays simple and integrated. -D Class – Direct Fet ® Technology - Efficient heat dissipation and precision -Stable under 2 Ohms -Stackable aluminium chassis with high heat dissipation -Low noise operational amplifiers New Japan Radio® NJM4580 -Low ESR capacitors - 105°C (220°F) -Pseudo-balanced inputs

#mirageaudioสำนักงานใหญ่ #MirageRatchapreuk

Focal FPX 4.800 : AMPLIFIER

FPX 4.800 : Amplifier The FPX 4.800 is a very compact 4-channel amplifier with a power of 4x120 Watts RMS at 4 Ohms. Offering a 4-/3-/2-channel mode, stable at 2 Ohms and equipped with an active crossover for each pair of channels, the FPX 4.800 is the most versatile model in this range. Thanks to its very high power, this is the ideal amplifier for powering front and rear speaker drivers, or for hi-fi installations with a 2-way kit in the front and a subwoofer. The 2-/4-channel input modes ensure compatibility with head units only equipped with a pair output lines. The high power and musicality of this amplifier will ensure you get the best out of your high-end speaker drivers from our Performance line. 4-/3-/2-channel Class D amplifier 2-/4-channel input modes Stable at 2 Ohms Active crossover for each pair of channels The FPX 4.800 measures 921⁄64 x 513⁄64 x 23⁄32″ (23.7 x 13.2 x 5.3 cm).
