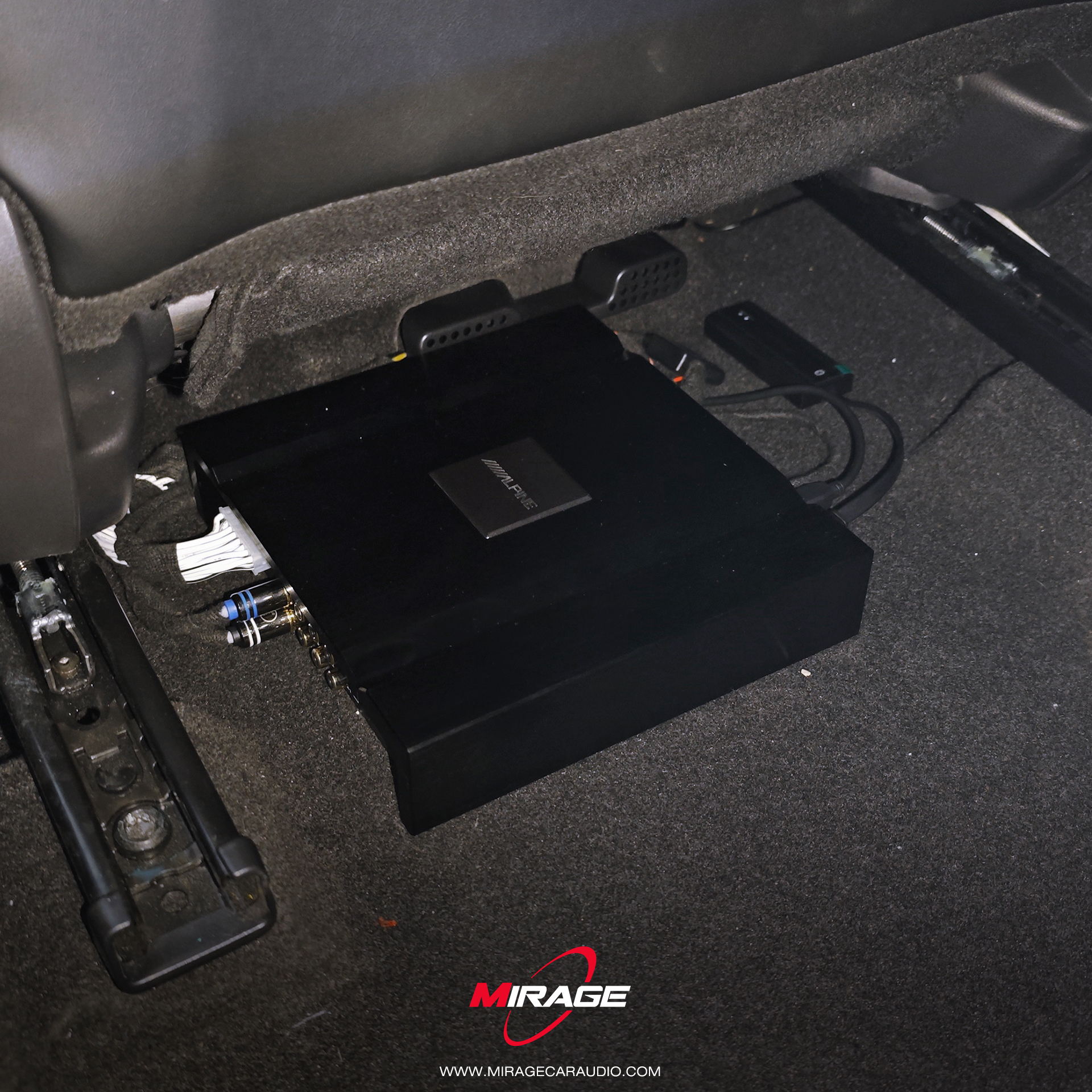

8 – CHANNEL SOUND PROCESSOR Inputs 6 Ch Hi-Level / 2-Ch RCA HD Bluetooth Outputs 8 Ch Hi-Level / 8 Ch RCA 8CH x 35W RMS Sampling Rate : 48kHz/24Bit Sound & Tuning 31-Band Parametric or Graphic EQ HPF /LPF / Bandpass Crossover per channel Software PC / Alpine music Application (Smartphone) Matrix input summing

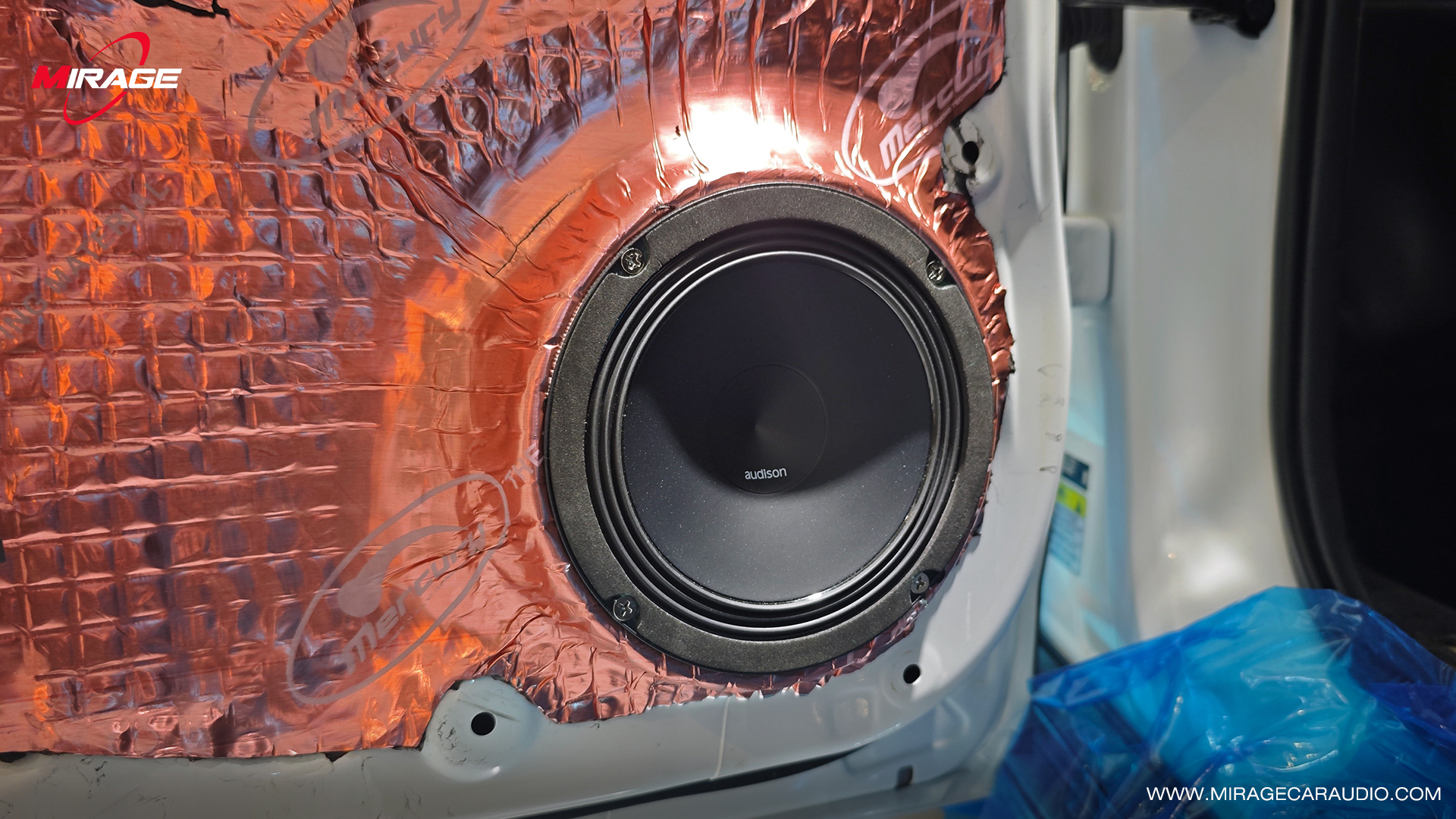

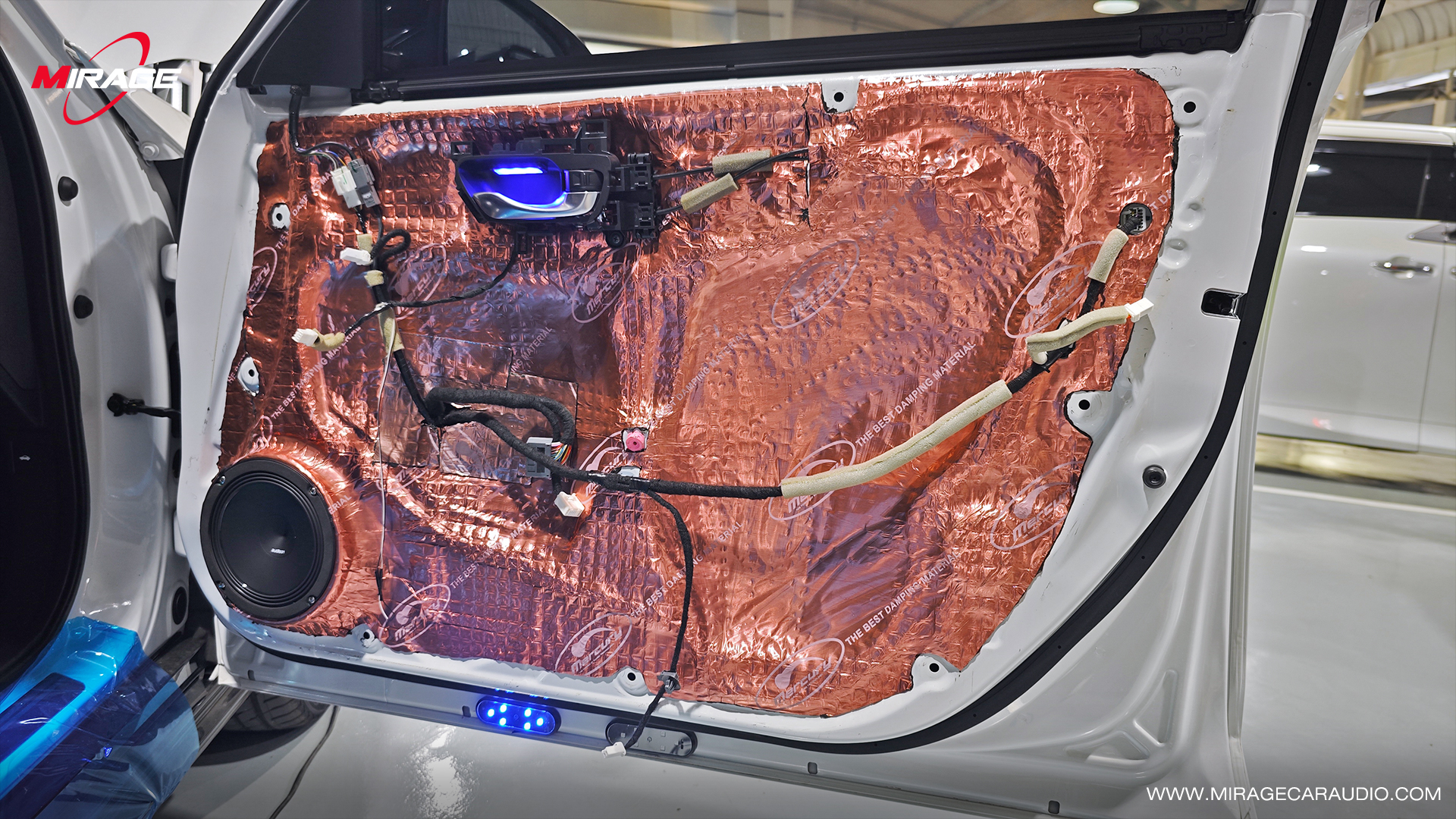

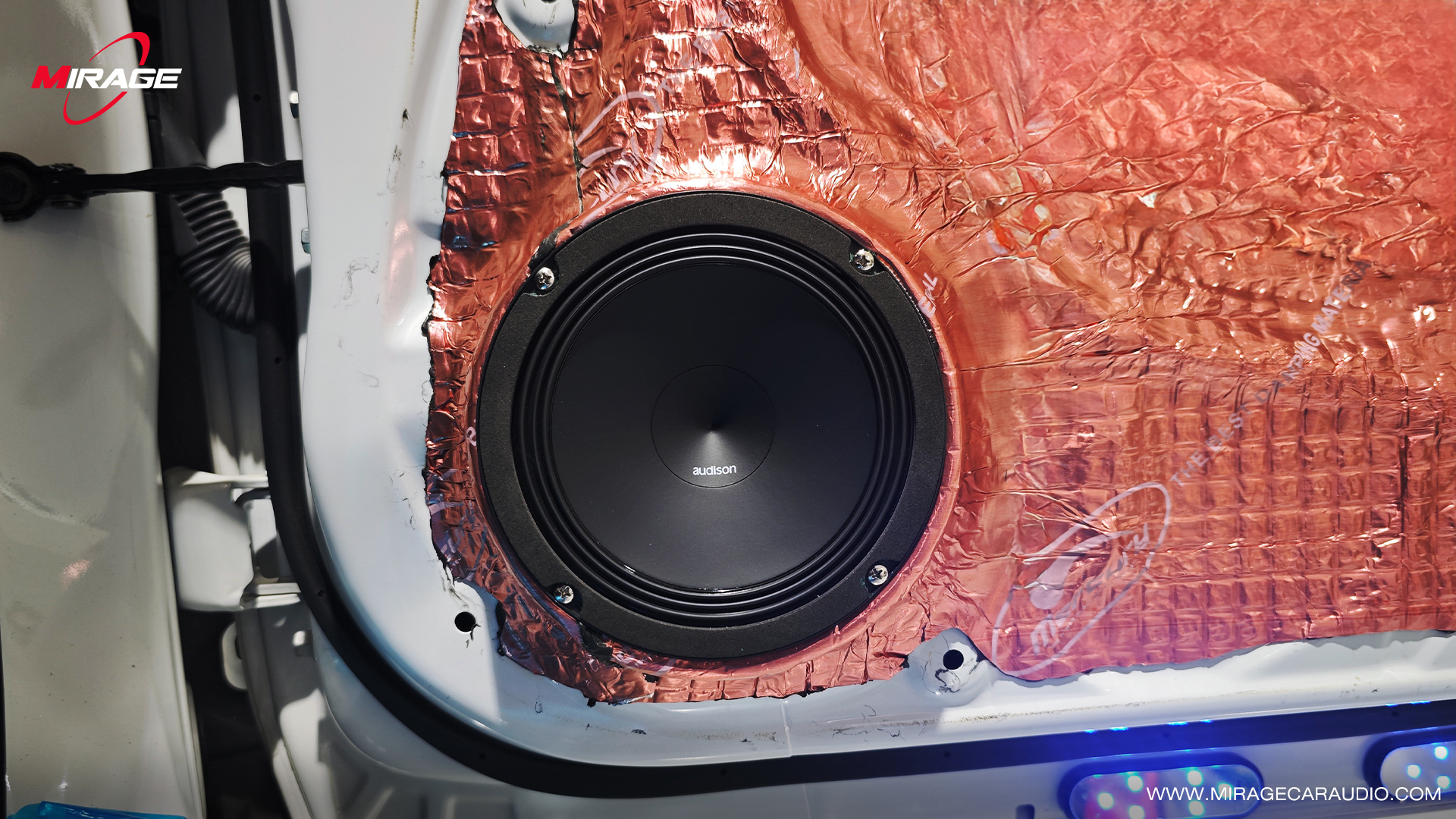

Audison Prima APK 165 16.5 cm/6.5 Inch, 2 Way, komposet Impedance: 4 Ohms, 142 mm, depth: 56 mm diameter, pack of 2. 93.5 dB SPL - 2 x 100/300 W RMS/max. frequency 60-20.000 Hz, High quality membrane, large storage basket schwingspulendurchmesser plat High qualité-souple with flat hochtonpegelanpassung 26 mm in height Comp 2 way System SystemSize 165 mm (6.5") Woofer26 mm (1") Tweeter46,5 x 37,5 x 20,1 mm (1.83" x 1.47 x 0.8) CrossoverPower Handling 100 W Continuous Power300 W Peak PowerImpedance 4 Ω Frequency Response 60 - 20k Hz Sensitivity 93,5 dB/Spl

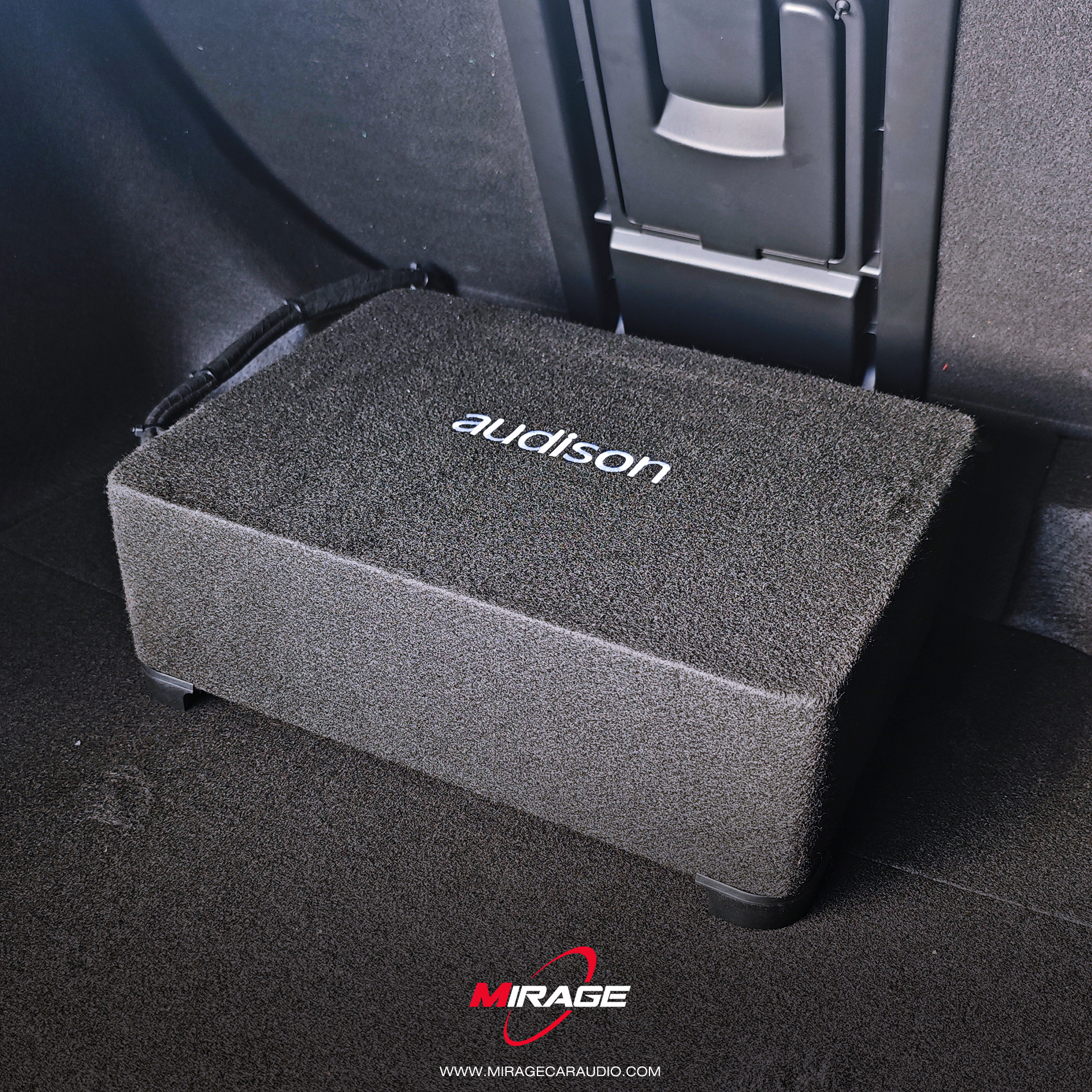

APBX 10 AS2 ACTIVE SUB BOX The Prima APBX 10 AS2 active subwoofer, with 10-inch driver,features a dedicated high performance amplification module which enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The amplification module, with power outputs of 400W RMS is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. New input stage DBT (Dynamic Bass Tracking) technology allows 100% use of the he-li (High Efficiency Low Impedance) amplifier power and to enjoy a tense and dynamic bass even at very high listening volumes. Eliminating the voltage booster was made possible thanks to the development of the new dual coil drivers, which inherit all the technological background of the Prima subwoofers, but differ for the ultra low impedance (0.16 ohms for APBX 10 AS). This feature ensures a perfect synergy with the he-li (High Efficiency Low Impedance) technology, maximizing the combination of amplifier, speakers and sealed box, to obtain low, powerful and crisp frequencies. The controls section is complete and provides an optimal regulation of the low frequency emission in the car cabin. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an AP bit processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response in the lower side of the spectrum. The high-level speaker-in input on multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after market sources. The subwoofer automatic turn on/off function ART (Automatic Remote Turn-On) can be configured to be controlled by the source’s remote signal, by the voltage variation on the high-level input or by the audio signal on both inputs. Phase control (0 – 180 °) completes the equipment. The SSP (Sub Smart Plug) terminal block is provided with a single Plug&Play connector to be able to disconnect the box easily and safely.
